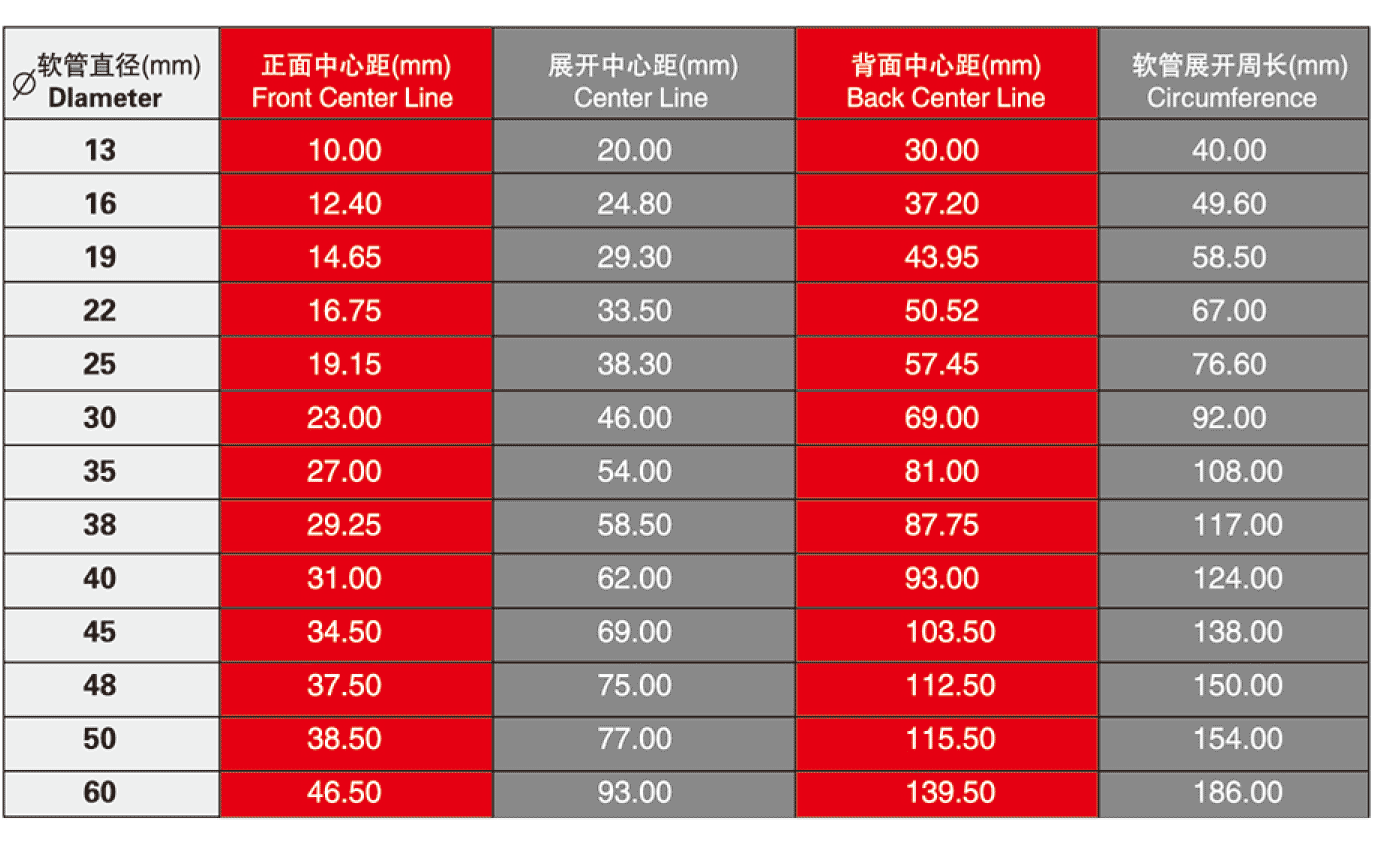

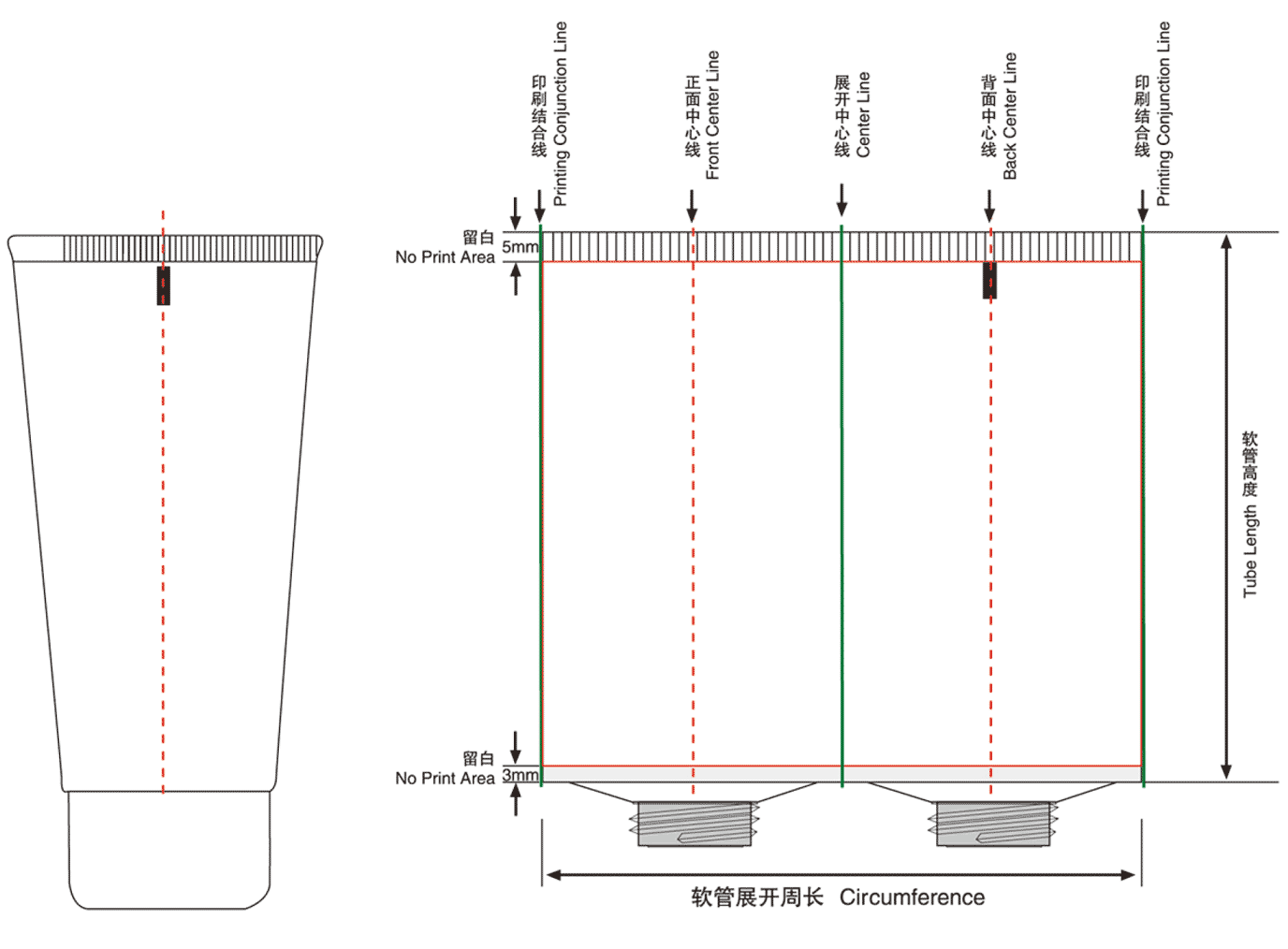

軟管印刷尺寸圖
(1)生產后整體收縮約2.0%;
Product may shrink by 2.0% following production
(2)圓周印刷拼預留1.5mm重疊量;
1.5mm must be reserved for circumference printing
(3)標準電眼尺寸為2.0mm x 7.0mm，可按要求特別制作;
Standard xize for eye mark is 2.0mm x 7.0mm, othersizes are available on request
(4)管扁不印刷留白3mm，管尾不印刷留白5mm，也可根據需要調整。
No print area next to the tube shoulder is 3mm, no print aera on the tube tail is 5mm, they can be adjusted according to the requirement.

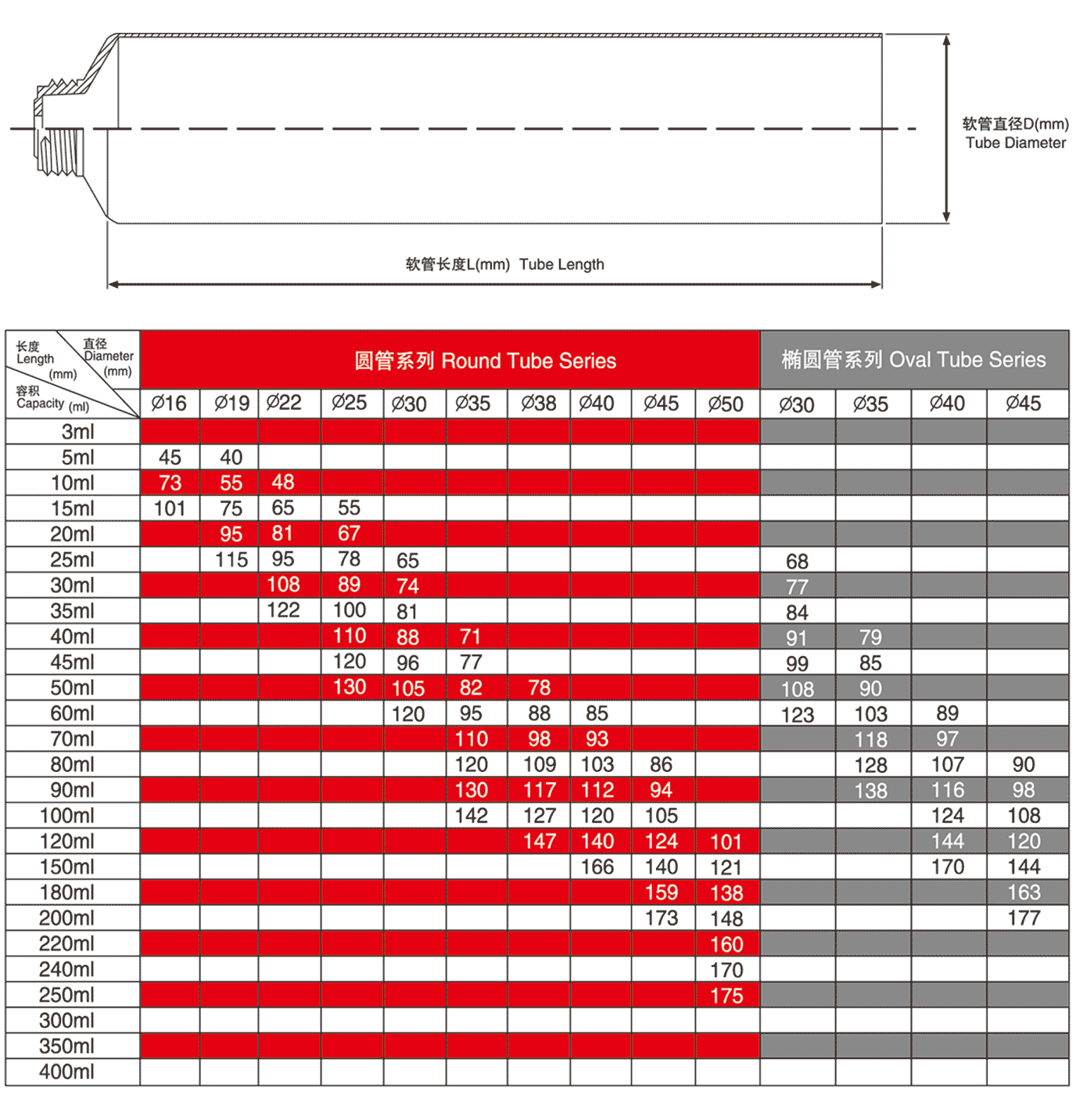

軟管尺寸與容積參考
(1) 軟管直徑固定，長度可酌量伸減;
Tube diameter is set,length can be adjusted
(2) 以上容量表謹做參考，可以根據客戶需求在一定范圍內調整；
Specifications are for reference only,and customer sizes are available
(3) 上表所列管長封尾后測量的結果，如客戶自行封尾，管長需增加10-20mm.
Above tube length are the testingresult after the sealing,if customer seals the tubes by himself,the tube length should increase 10-20mm.
